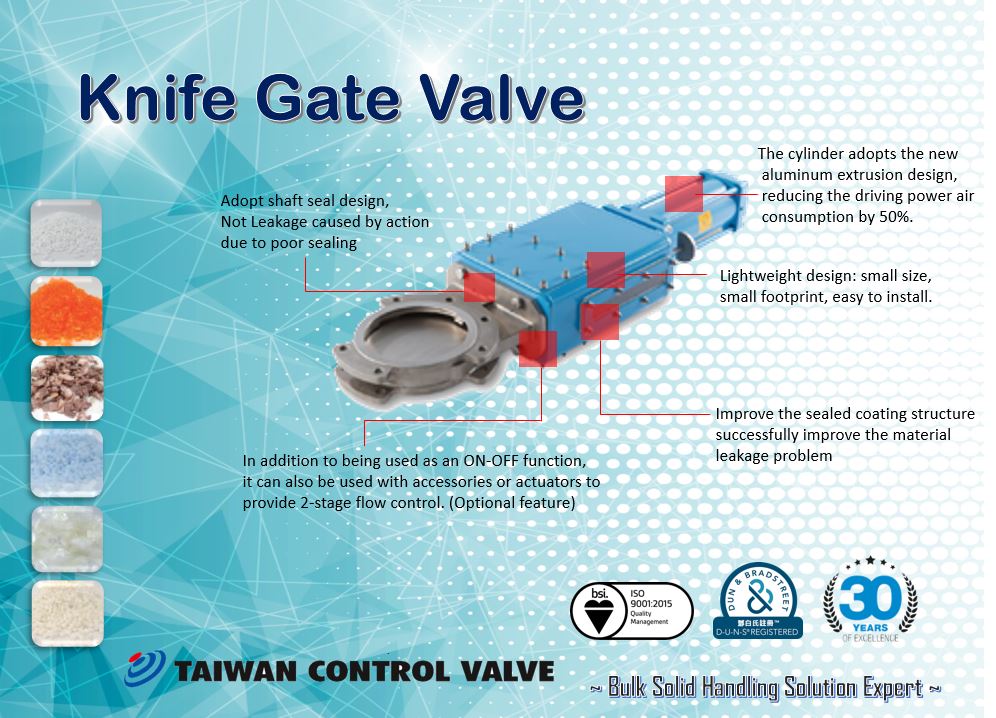

Make it More than just a knife gate valve
Best Sealing Effect
The valve plate is made of stainless steel and finely ground and polished to obtain the best sealing effect.
Avoid Leakage Problem
Improve the sealed coating structure, successfully improve the material leakage problem, and achieve the environmental protection concept of no dust leakage, which can solve the problem of environmental mess and pay attention to the health of the operator.
Easy to Install
Lightweight & compact design: small size, small footprint, easy to install.
Aluminum Extrusion Design
The cylinder adopts new technology aluminum extrusion design, which has a better appearance, easy maintenance, convenient use and longer life.
50% Less Air Consumption
The cylinder structure is more evolved, reducing the driving power air consumption by 50%, which is more in line with environmental protection and green energy conditions.
Better Structural Strength
The valve body adopts flange type integral casting, which has better structural strength.
Applied Fluid Characteristics
The material can be selected from SUS304 or SUS316 according to user needs, which can be applied to a variety of fluid characteristics.
Corrosion & Wear Resistant
The shaft sealing is made of PTFE reinforced, which is both corrosion & wear-resistant, non-sticky, and does not cause leakage due to poor sealing after long-time operation.
2-stage Flow Control
In addition to being used as an ON-OFF function, it can also be used with accessories or actuators to provide 2-stage flow control. (This item is an optional function)
Why Choose our knife gate valve
Taiwan Control Valve
aims to offer the global customers with professional bulk solid handling
solutions for more than 30 years of Taiwan Control Valve. It has always been a
leader in various types of powder and granular valves. As a professional
manufacturer of knife gate valves, whether manual or
pneumatic knife gate valves are designated brands by most petrochemical
plants,
Knife Gate Valve,
also known as Slide Valve. Generally used in
liquids containing particles, fibers, impurities, etc. or powders and granules
in the air conveying application, as a switch. Its air-tight function of the gate knife valve developed by TCV makes the function of the knife gate valve more advanced, more than a knife gate valve. The inner tight ring design, when the gate reaches the position, the air tight ring is inflated, make the airtight ring and the gate close contact, produce an airtight effect. The inlet baffle is designed to prevent the conveyed particles from being cut by the gate when it is closed, and to maintain the integrity of the particles. The valve body adopts a fully sealed design, which can avoid gas leakage during operation. And combined with the drive mechanism (pneumatic/manual type), greatly reducing the output required for switching.
Applied materials: Plastic powder/particles, paper pulp, wood chips, wood pulp, fiber, dust, fly ash, chemical treatment sewage, silo export, grain, cement slurry, coal ash, etc.
The knife gate valves produced by Taiwan Control are widely used in pneumatic conveying systems, tubular chain conveying systems, dust-removing equipment, powder and granular material discharge equipment, etc.
“TCV offers a light weight design, 100% tightness in both directions, full bore capability and short face to face dimensions to name but a few, our knife gate valve is one such product that is truly versatile”.
More detailed of knife gate valve product specifications,
https://tcvct.com/product-category/equipment-products/gate-valve/
valve selection checklist
flow control/modulating/ on off application /cycle (details e.g. 6 time operation per hour)
Please check with our sales representatives.
maximum/minimum working pressures
Operation-how is the valve operated and where from e.g. locally or from platform above.
Actuator location- direct mounted /indirect mount via floor mounted pillar etc.
