FEATURES :
*Patented design of anti-shearing device can avoid granular products being chopped in operation. It can reduce the risk of equipment vibration and breakdown.
*Strengthen the design of bearing support, and enhance the matching precision between rotor and casing.
*Integrated leakage air vent for improved filling efficiency.
*Rotor shaft with double lip seal design for low leakage rate.
*Special rotor design for easy cleaning during product changes.

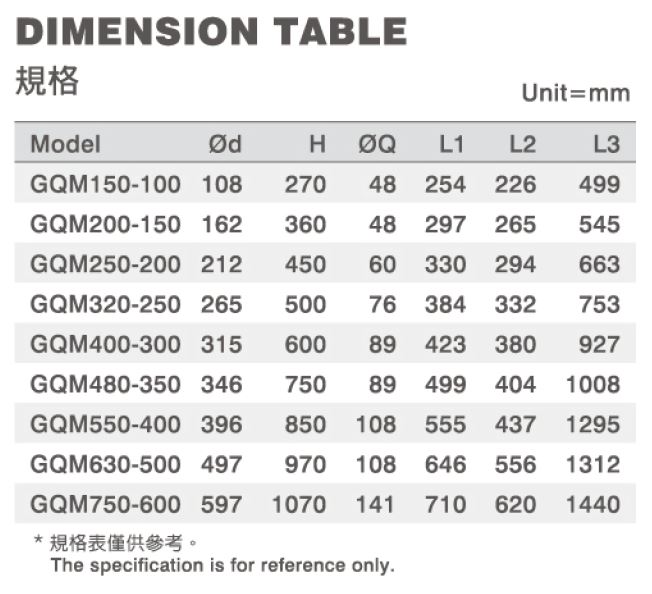

SPECIFICATIONS :
Size : 4”~24”
Flange Specifications : ANSI 150#， DIN PN10，JIS
Pressure Range : <=1.5bar
Temperature Range : -10oC ~ 200oC
Material : CF8 / CF8M
*Customized valve design is available upon request.
