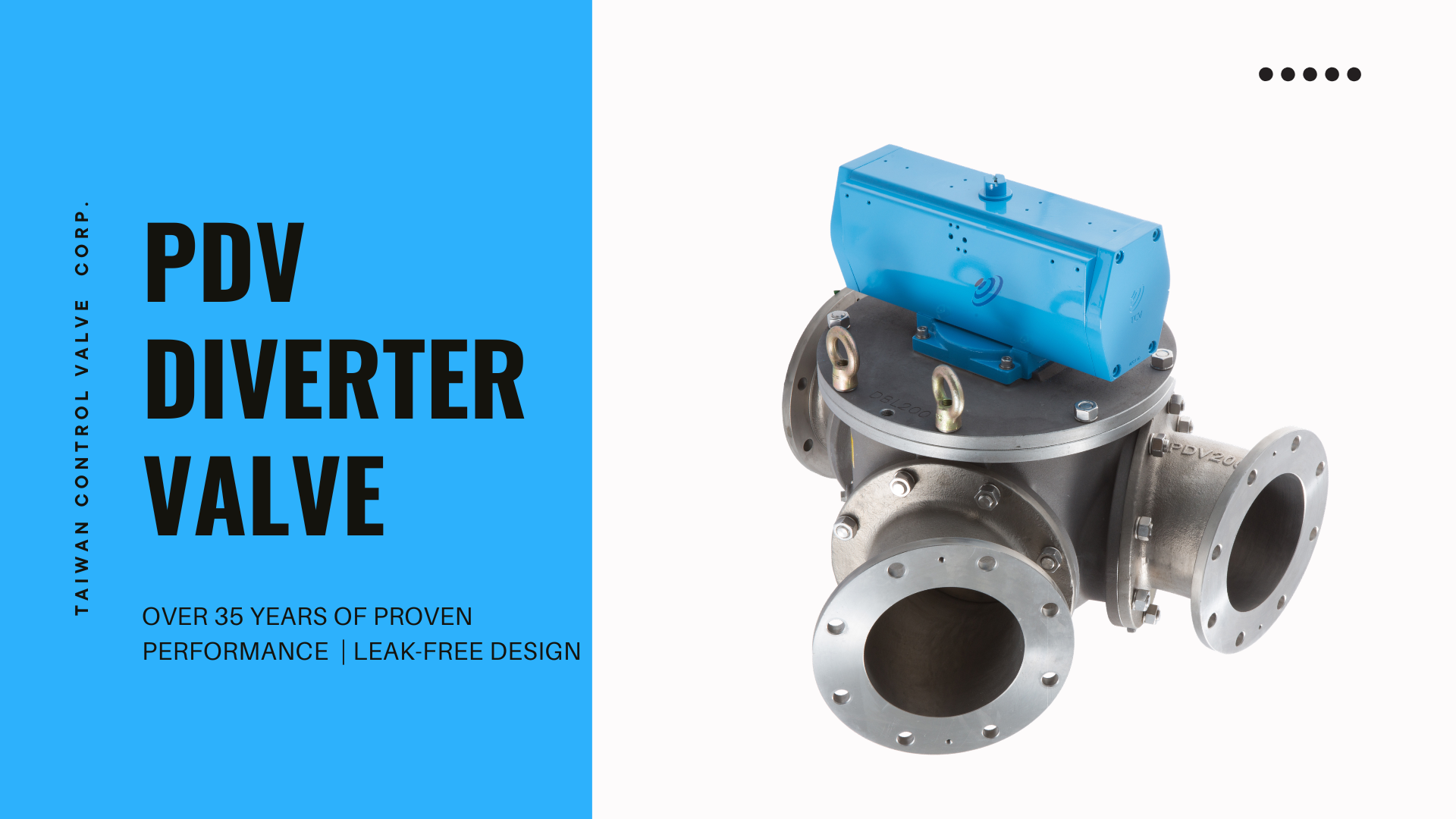

The PDV Powder & Pellet Diverter Valve is specifically designed for powder, pellet, and pneumatic conveying systems, providing reliable material flow switching and diversion. Backed by over 35 years of proven field performance, it has been widely adopted across the chemical, food, plastics, and other bulk material industries. Its dependable performance helps improve conveying efficiency while enhancing overall production quality.
The full-port flow path minimizes material buildup and conveying resistance, allowing materials to flow smoothly through the valve. Its high-performance sealing structure effectively prevents dust leakage, achieving virtually leak-free operation. A protected valve seat design reduces wear and extends service life, making the valve ideal for continuous-duty applications.
The independently adjustable flange design allows flexible installation angles to suit various piping layouts, simplifying system integration. Manual and pneumatic actuation options are available to meet different operational and automation requirements.
Features
- Designed for material flow switching in powder, pellet, and pneumatic conveying systems.
- Minimizes conveying resistance and material retention.
- Special sealing design effectively reduces the risk of dust leakage.
- Adjustable flange design allows flexible installation angles to suit different piping requirements.
- Available with manual or pneumatic actuation to meet various automation needs.
- Custom sizes, materials, and specifications are available upon request.
Applications
The PDV Powder & Pellet Diverter Valve is suitable for a wide range of bulk material handling and pneumatic conveying systems. Whether for new installations or existing production line upgrades, it delivers reliable material diversion while helping manufacturers:
- Improve conveying efficiency
- Reduce maintenance costs
- Minimize dust leakage
- Extend equipment service life
- Enhance overall process reliability
Specifications
| Item | Specification |
| Size Range | 1-1/2″ to 12″ |
| Flange Standard | ANSI Class 150, PN10, DIN, JIS |
| Operating Pressure | ≤ 4 bar |
| Operating Temperature | -10°C to 200°C |
| Diverter Angle | L45°, R45°, L90°, R90°, C45°, C90°, C135° |
| Body Material | CF8, CF8M, Aluminum |
Custom sizes, materials, and special specifications are available upon request.
Contact Us
Interested in learning more about the PDV Powder & Pellet Diverter Valve?
Whether you need product information, customized specifications, or application advice, our engineering team is ready to help. We will recommend the most suitable bulk material handling solution based on your material characteristics and process requirements.
